Standart Vickers Sertlik Ölçüm Cihazları
HV series
Standart Vickers Sertlik Ölçüm Cihazı
HVS digital display series
Standart Vickers Sertlik Ölçüm Cihazı
MHV large screen digital display series
Standart Vickers Sertlik Ölçüm Cihazı

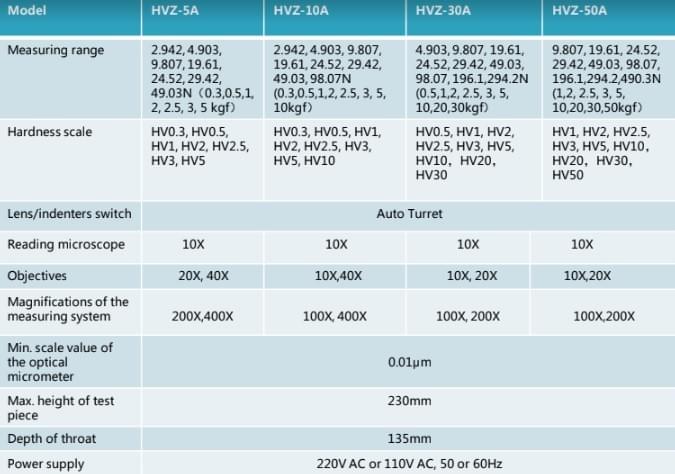

Standard Vickers Hardness Testers Specifications
Üst model --- Tablet Kontrol Dijital Ekranlı Vickers Sertlik Ölçüm Cihazı
HVZ series
* 8.3”tablet PC, Windows 10.0 operating system, with all computer functions, can be connected with external monitor and printer;
* User-friendly interface, easy operation;
* All technical parameters required for testing are selected on the tablet, such as measuring method,the testing force value,the indentation length,hardness value,the dwell time of the testing force ,as well as the number of measurement. Beside,it has such functions as registering year,month and date,measuring result,treating data,outputting information with printer;
* Ergonomic large chassis, large test area (230mm Height *135mm Depth)
* Motorized turret for changing between indenter and lenses to guarantee the precise positioning;
* Turret for two indenters and four objectives (maximum, customized), One indenter and two objectives ( standard)
* closed-loop loading control;
*Excecutive standard: ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
*Optional functions:
* External computer with automatic measuring system
* automatic stage
* Automatic focusÜst model --- Tablet Kontrol Dijital Ekranlı Vickers Sertlik Ölçüm Cihazı Özellikleri
HVZ-50A Otomatik Vickers Sertlik Ölçüm Cihazı
